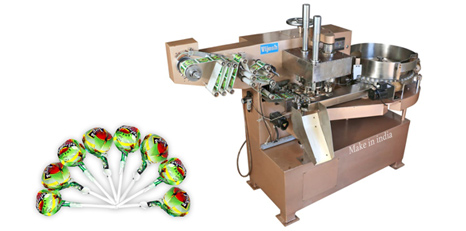

   LOLLIPOP BUNCH WRAP MACHINE

Click to enlarge

About Machine


VBWM120 Lollipop Packaging Machine is designed for packing lollipop into bunch single twist wrapping. Frequency converter for speed adjustment, Servo motor and PLC control system is used on the machine; Parameter setting and paper cutting adjustment is achieved by operator-machine interface. Heating function included in turret.

Features:


Automatic arrangement reduces manual effort.

Oversize feeding plate

Lollipop sensor to avoid wrapper wastage. No Lollipop-no wrapper.

Easy operation and maintenance

Uses micro-computer control to sense color mark to position the lollipop in center of wrapper


Standard Specifications:


Speed: up to 120 packs/Min;

Product size: Diameter22-30mm;

Overall size: approx 2500x920x1520mm;

Weight: approx 1200kgs;

Wrapping Material: CPP/PET CPP/BOPP.
